Gears are fundamental components in mechanical systems, used to transmit motion and power between rotating shafts. One important aspect of gears is their pitch, which determines the spacing and interaction of the gear teeth. In this article, we will explore how to calculate the pitch of gears.
The pitch of a gear is typically defined as the distance between adjacent teeth along the pitch circle. The pitch circle is an imaginary circle that the gear teeth are considered to be uniformly spaced around. There are two common ways to express the pitch of gears: diametral pitch and circular pitch.
Diametral pitch (DP) is the number of teeth per inch of the pitch diameter of the gear. It is calculated using the formula: DP = N / D, where N is the number of teeth on the gear and D is the pitch diameter. The pitch diameter is the diameter of the pitch circle.
Circular pitch (CP) is the distance along the pitch circle between corresponding points on adjacent teeth. It is calculated using the formula: CP = πD / N, where π is the mathematical constant pi (approximately 3.14159), D is the pitch diameter, and N is the number of teeth.
To calculate the pitch diameter, we need to know the module or pitch of the gear. The module (m) is the ratio of the pitch diameter to the number of teeth, and it is given by the formula: m = D / N. Rearranging this formula, we can find the pitch diameter: D = mN.
For example, if we have a gear with 20 teeth and a module of 2 mm, the pitch diameter would be D = 2 * 20 = 40 mm. Using this pitch diameter, we can calculate the diametral pitch: DP = 20 / 40 = 0.5 teeth per mm. Alternatively, we can calculate the circular pitch: CP = π * 40 / 20 = 2π mm.
It is important to note that the pitch of gears must be accurately calculated to ensure proper meshing and smooth operation of the gear system. Incorrect pitch can lead to problems such as noise, vibration, and premature wear.
In addition to the basic pitch calculations, there are other factors that may affect the pitch of gears, such as the type of gear tooth profile, the manufacturing tolerances, and the intended application. Engineers and designers often use specialized software or reference tables to ensure accurate pitch calculations and select the appropriate gears for a given application.
In conclusion, calculating the pitch of gears involves understanding the relationship between the number of teeth, the pitch diameter, and the chosen method of expressing the pitch (diametral pitch or circular pitch). By accurately calculating the pitch, we can ensure the efficient and reliable operation of gear systems in various mechanical applications.
About Zhejiang Toman Intelligent Technology Co., Ltd. (Toman)
Toman is a company that adheres to the strategic vision of to be the leader in the professional field, with the mission of innovation to drive customer value enhancement, and the business philosophy of WISE, ALWAYS KEEP STEP AHEAD. In operation since 2006, the company includes the complete range of gear hobbing machine, gear cutting machine, gear machining compound machine tools, gear shaving machine, automatic production units, automatic turning production lines, and MES manufacturing execution system, etc. TOMAN today, is recognised as an industry leader for machines in China.
Toman cutting machines:

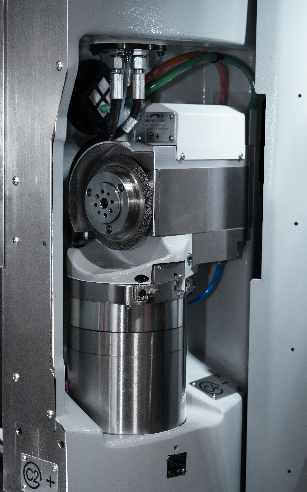

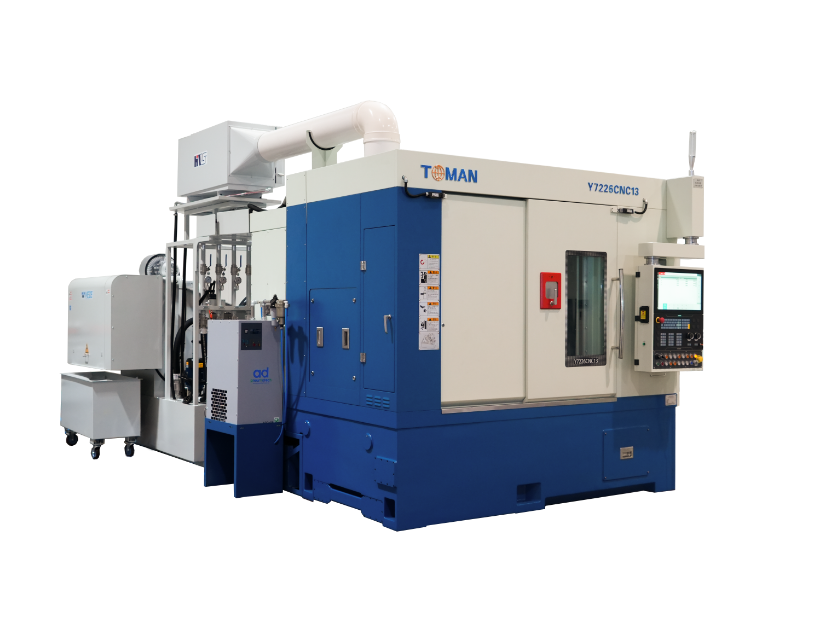

CNC high precision gear hobbing machine, gear grinding machine, gear chamfering machine, gear shaving machine, gear hobbing machine with integrated chamfering station etc.
