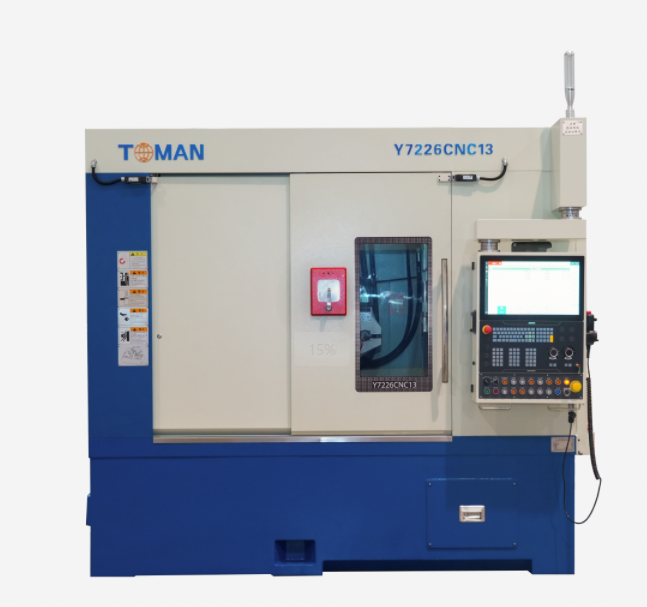

1. Pre - operation Preparation
Machine Inspection
Before starting any grinding operation, conduct a thorough inspection of the gear grinding machine. Check the overall condition of the machine, including the exterior for any signs of damage or wear. Examine the lubrication system to ensure that all components are properly lubricated. Low lubricant levels or contaminated lubricants can lead to increased friction, heat generation, and premature wear of machine parts.
Inspect the grinding wheel carefully. Look for any cracks, chips, or uneven wear. A damaged grinding wheel can not only affect the quality of the gear surface but also pose a safety hazard during operation. If any issues are detected, replace the grinding wheel immediately.
Workpiece Preparation
Prepare the workpiece meticulously. First, measure the workpiece to ensure it meets the required specifications. Any deviations in the workpiece's dimensions can result in inaccurate gear grinding. Clean the workpiece thoroughly to remove any dirt, debris, or oil that may interfere with the grinding process.
Properly mount the workpiece on the machine's fixture. Ensure that the workpiece is centered accurately and clamped securely. Uneven clamping can cause the workpiece to vibrate during grinding, leading to poor surface finish and inaccurate tooth profiles. Use precision measuring tools like dial indicators to verify the workpiece's alignment.
Parameter Setting
Refer to the gear design specifications and the machine's manual to set the appropriate machining parameters. These parameters include the grinding speed, feed rate, and depth of cut. The grinding speed should be selected based on the gear material and the type of grinding wheel. For example, when grinding hardened steel gears with a high - performance grinding wheel, a relatively high grinding speed can be used to achieve efficient material removal.
The feed rate determines how fast the grinding wheel moves across the workpiece. A too - high feed rate may cause excessive grinding forces, resulting in surface roughness and potential damage to the gear. A too - low feed rate, on the other hand, can reduce productivity. The depth of cut should be adjusted according to the gear's tooth depth and the grinding process requirements. For rough grinding, a larger depth of cut can be applied, while for finishing, a smaller depth is preferred to achieve the desired surface finish and accuracy.
2. Operation Process

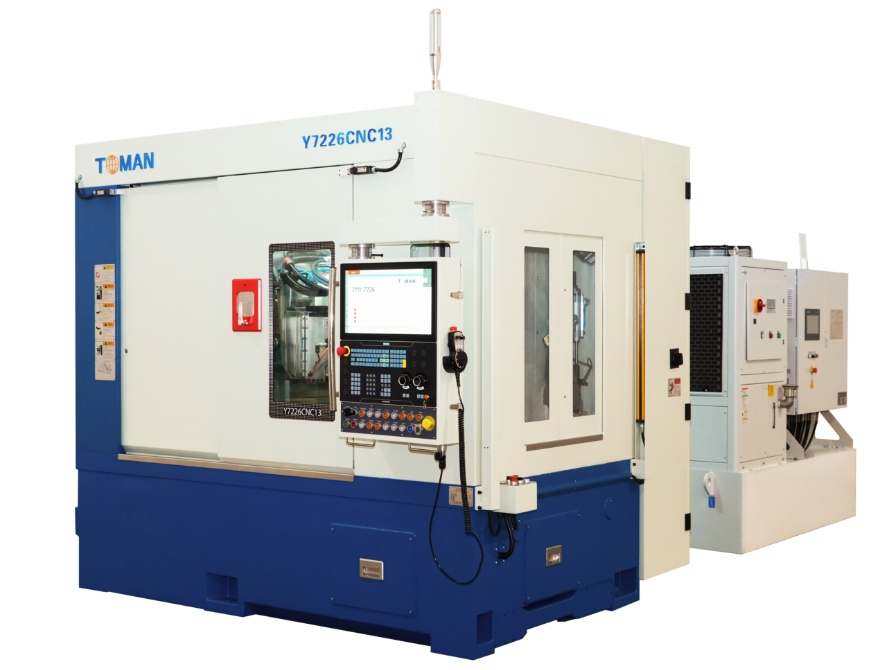

Starting the Machine
Once all the pre - operation preparations are complete, start the gear grinding machine. First, turn on the power supply and wait for the machine's control system to initialize. Check the display panel for any error messages or warnings. If there are any issues, address them before proceeding.
Engage the coolant system. Coolant plays a crucial role in the grinding process by reducing heat, flushing away chips, and improving the surface finish of the gear. Ensure that the coolant flow rate is appropriate and that the coolant is reaching all the necessary areas of the grinding zone.
Grinding Operation
Slowly start the grinding wheel rotation and gradually increase the speed to the set value. Monitor the grinding process closely. Observe the grinding sparks, which can provide valuable information about the grinding conditions. Uniform and fine - grained sparks indicate a normal grinding process, while large or irregular sparks may suggest issues such as excessive grinding forces or a worn - out grinding wheel.
During the grinding process, pay attention to the machine's vibrations. Slight vibrations are normal, but excessive vibrations can affect the gear's accuracy and surface quality. If abnormal vibrations are detected, stop the machine immediately and investigate the cause. It could be due to an unbalanced grinding wheel, loose machine components, or improper workpiece clamping.
Monitoring and Adjusting
Continuously monitor the machining parameters and the gear's dimensions during the grinding process. Use in - process measuring tools, such as gear measuring machines or probe - based measurement systems, to check the gear's tooth profile, pitch, and other critical dimensions. If any deviations are detected, make appropriate adjustments to the machining parameters. For example, if the tooth profile is slightly off, adjust the feed rate or the grinding wheel's position to correct the error.
3. Post - operation Procedures
Machine Shutdown
After the grinding operation is completed, first, stop the grinding wheel rotation. Then, turn off the coolant system. Wait for the machine to come to a complete stop before proceeding with the next steps.
Disengage the workpiece from the fixture carefully. Use appropriate tools to avoid damaging the gear or the fixture. Remove the workpiece and place it in a designated area for inspection and further processing.
Machine Cleaning and Maintenance
Clean the gear grinding machine thoroughly. Remove any chips, coolant residue, and debris from the machine's surface, worktable, and grinding wheel housing. Use a brush or compressed air to clean hard - to - reach areas.
Perform a post - operation inspection of the machine. Check for any signs of wear or damage that may have occurred during the grinding process. Lubricate the machine's moving parts as required. This helps to prevent corrosion and ensures smooth operation during the next use.
By following this comprehensive operating guide for gear grinding machines, manufacturers can ensure consistent production of high - precision gears, reduce machine downtime, and improve overall productivity. If you have any questions or need further assistance regarding gear grinding machine operations, our team of experts is always ready to help. Feel free to reach out to us for more information.
