In the era of rapid development of new energy vehicles, the demand for high - precision and high - performance gears is soaring. Hobbing machines, with their unique machining capabilities, have become an indispensable part of the new energy vehicle gear manufacturing process. This article will comprehensively explore the key applications of hobbing machines in this field.
1. Hobbing Machines: The Backbone of Gear Machining in New Energy Vehicles
High - Precision Gear Tooth Profile Machining
New energy vehicle gears require extremely high precision to ensure smooth power transmission and reduce noise. Hobbing machines are capable of achieving this precision. By using advanced numerical control (NC) systems, hobbing machines can precisely control the movement of the hob and the workpiece. This enables the machining of gear tooth profiles with tight tolerances. For example, in the production of electric vehicle drive motor gears, the tooth profile accuracy requirements are often within a few micrometers. Hobbing machines can meet these requirements by accurately adjusting the cutting speed, feed rate, and depth of cut during the machining process. The result is gears with smooth meshing surfaces, which contribute to the efficient operation of the vehicle's powertrain.
Machining of Complex Gear Geometries
The gears used in new energy vehicles often have complex geometries, such as helical gears and spline gears. Hobbing machines are well - suited for machining these complex shapes. The hob, with its specialized cutting edges, can be programmed to follow the desired gear geometry. For helical gears, the hobbing machine can control the angle and pitch of the helix during the cutting process. This flexibility allows manufacturers to produce gears that are tailored to the specific requirements of new energy vehicle drivetrains, improving the overall performance and efficiency of the vehicles.
2. Material - Specific Machining Advantages
Machining of High - Strength Alloys
New energy vehicle gears are frequently made from high - strength alloys to withstand the high torque and stress generated in electric drive systems. Hobbing machines equipped with high - performance cutting tools, such as carbide hobs, can effectively machine these tough materials. The carbide hobs have excellent wear resistance and cutting performance, enabling them to maintain sharp cutting edges even when machining hard alloys. This ensures that the gear teeth are machined accurately and the surface finish is of high quality, enhancing the durability and reliability of the gears.
Machining of Lightweight Materials
In addition to high - strength alloys, lightweight materials like aluminum alloys are also used in some new energy vehicle gears to reduce the overall weight of the vehicle and improve energy efficiency. Hobbing machines can handle the machining of aluminum alloys with ease. The relatively soft nature of aluminum alloys allows for higher cutting speeds, which increases the machining efficiency. At the same time, by carefully adjusting the machining parameters, hobbing machines can prevent issues such as burr formation and surface roughness, resulting in high - quality aluminum alloy gears.
3. Productivity - enhancing Features in Hobbing Machines for New Energy Vehicle Gear Production
High - Speed Machining Capabilities
To meet the large - scale production needs of new energy vehicles, hobbing machines are now equipped with high - speed machining capabilities. High - speed spindles and advanced drive systems allow the hobbing machine to operate at higher cutting speeds without sacrificing precision. This significantly reduces the machining time per gear, increasing the overall productivity of the gear manufacturing process. For example, modern hobbing machines can achieve cutting speeds several times higher than traditional models, enabling manufacturers to produce more gears in less time.
Automated Loading and Unloading Systems
Many hobbing machines used in new energy vehicle gear production are integrated with automated loading and unloading systems. These systems can load raw workpieces onto the machine and unload the finished gears without manual intervention. This not only reduces the labor cost but also minimizes the downtime between machining cycles. The seamless operation of the automated systems ensures a continuous production flow, further enhancing the productivity of the gear manufacturing line.
4. Quality Control and Process Optimization in Hobbing for New Energy Vehicle Gears
In - Process Monitoring and Compensation
To ensure the quality of gears, hobbing machines are increasingly equipped with in - process monitoring systems. These systems use sensors to monitor parameters such as cutting force, temperature, and tool wear during the machining process. If any deviations from the optimal values are detected, the machine can automatically adjust the machining parameters in real - time. For example, if the cutting force exceeds a certain threshold, indicating potential tool wear, the machine can reduce the feed rate to prevent further tool damage and ensure the accuracy of the gear. This in - process monitoring and compensation mechanism helps to maintain the consistency and quality of the gears.
Process Simulation and Optimization
Before starting the actual gear machining process, manufacturers can use process simulation software. This software allows them to simulate the hobbing process on a computer, analyzing factors such as the distribution of cutting forces, heat generation, and the resulting gear quality. By optimizing the machining parameters in the simulation, manufacturers can identify the best - performing settings before running the hobbing machine. This reduces the trial - and - error process in actual production, saving time and resources while ensuring high - quality gear production.
In conclusion, hobbing machines play a crucial role in the gear machining for new energy vehicles. Their ability to machine high - precision, complex - shaped gears from various materials, along with productivity - enhancing features and quality control mechanisms, makes them an essential part of the new energy vehicle manufacturing industry. As the new energy vehicle market continues to grow, the technology of hobbing machines will also continue to evolve to meet the increasing demands for gear production. If you want to know more about our company's hobbing machine solutions for new energy vehicle gear machining, please feel free to contact us.
About Zhejiang Toman Intelligent Technology Co., Ltd. (Toman)
Toman is a company that adheres to the strategic vision of to be the leader in the professional field, with the mission of innovation to drive customer value enhancement, and the business philosophy of WISE, ALWAYS KEEP STEP AHEAD. In operation since 2006, the company includes the complete range of gear hobbing machine, gear cutting machine, gear machining compound machine tools, gear shaving machine, automatic production units, automatic turning production lines, and MES manufacturing execution system, etc. TOMAN today, is recognised as an industry leader for machines in China.
Toman cutting machines:

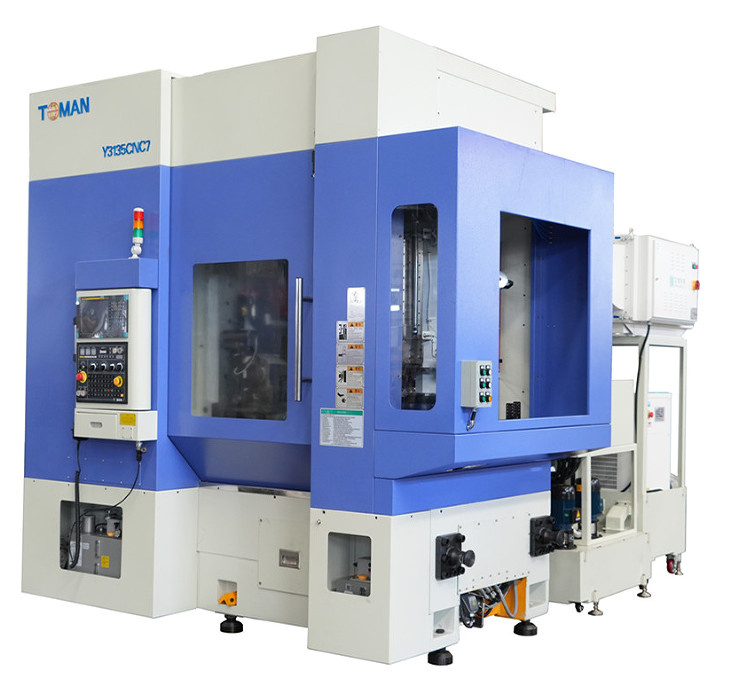

CNC high precision gear hobbing machine, gear chamfering machine, gear shaving machine, gear hobbing machine with integrated chamfering station etc.
-Profitable -Intelligent -Accurate
Our machines are suitable for commercial vehicle gear, passenger vehicle gear, construction machinery gear, especially for the processing of new energy vehicle gear.
